SPECIFICATIONS

AC Current: /

AC Voltage: /

Battery: 0.1-4.5V

Battery Included: Yes

Brand Name: RUIBOZHI

Certification: CE

Choice: yes

DC Current: /

DC Voltage: /

DIY Supplies: Electrical

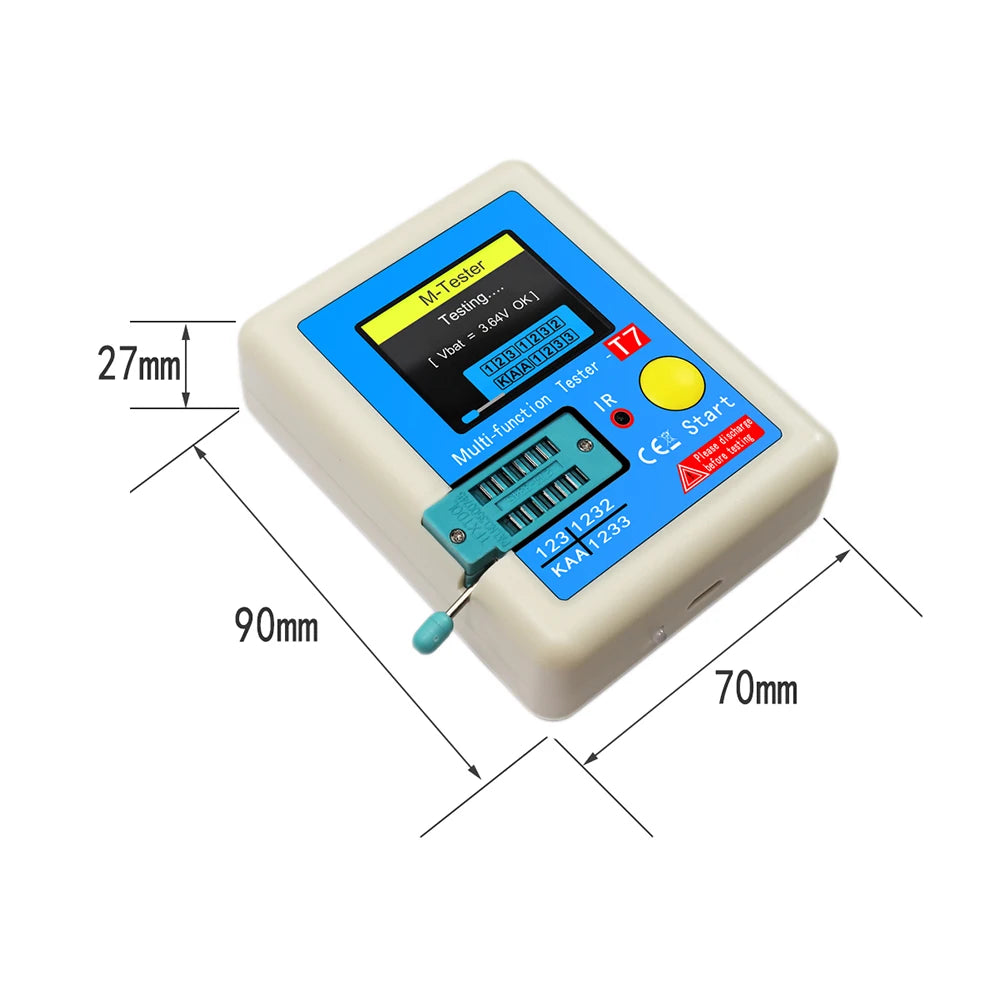

Dimensions: 8.8 x 8 x 2.8cm / 3.47 x 3.15 x 1.10in

Diode Range: < 4.5V

Display: 3.5inch TFT Screen

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Measurement unit: 100000015

Measuring Capacitance Range: 25pF-100mF

Measuring Inductance Range: 0.01mH-20H

Measuring Resistance Range: 0.01-50MΩ

Model Number: LCR-T7

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Package size - height (cm): 10

Package size - length (cm): 10

Package size - width (cm): 10

Package weight: 0.115

Power Mode: Rechargeable Lithium Battery (INCLUDED)

RUIBOZHI Model: LCR-T7

Semi-finishedproduct: No

Sold in: sell_by_piece

Triac Range: IGT < 6mA

Zener Diode Detect Area: 0.01-30V

Zener DiodeTransistor Detect Area: Transistor Detect Area: 0.01-4.5V

each pack: 1

semi_Choice: yes

Cautions for use：

The capacitor shall not be tested without discharge
The inductance of the transformer cannot be tested
Don't test online with electricity
Do not hook three hooks onto the circuit board for testing
Do not test live circuit boards
Otherwise, the tester will be burnt down. Burning the tester is the buyer's reason.
When the voltage and internal battery are below 3V, please charge before use.
Please use 5V battery or USB port to charge.

Transistor Detection:

After the power-off state or test is completed, put the test component into the transistor test area of the test socket, press the lock handle,
press the multi-function key, the tester automatically measures, and the measurement result is displayed at the end of the test.
Warning: We do not recommend using a tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!

Feature:

Automatic detection of zener diode 0.01-30V.
Self test with automatic calibration.
Support Hitachi IR coding.
IR waveform display.
Infrared receiving instruction.
Measurement results using TFT graphic display.
One key operation.
Auto power off (timeout settable).
Built-in high capacity rechargeable Li-ion battery.
Li-ion Battery voltage detection.

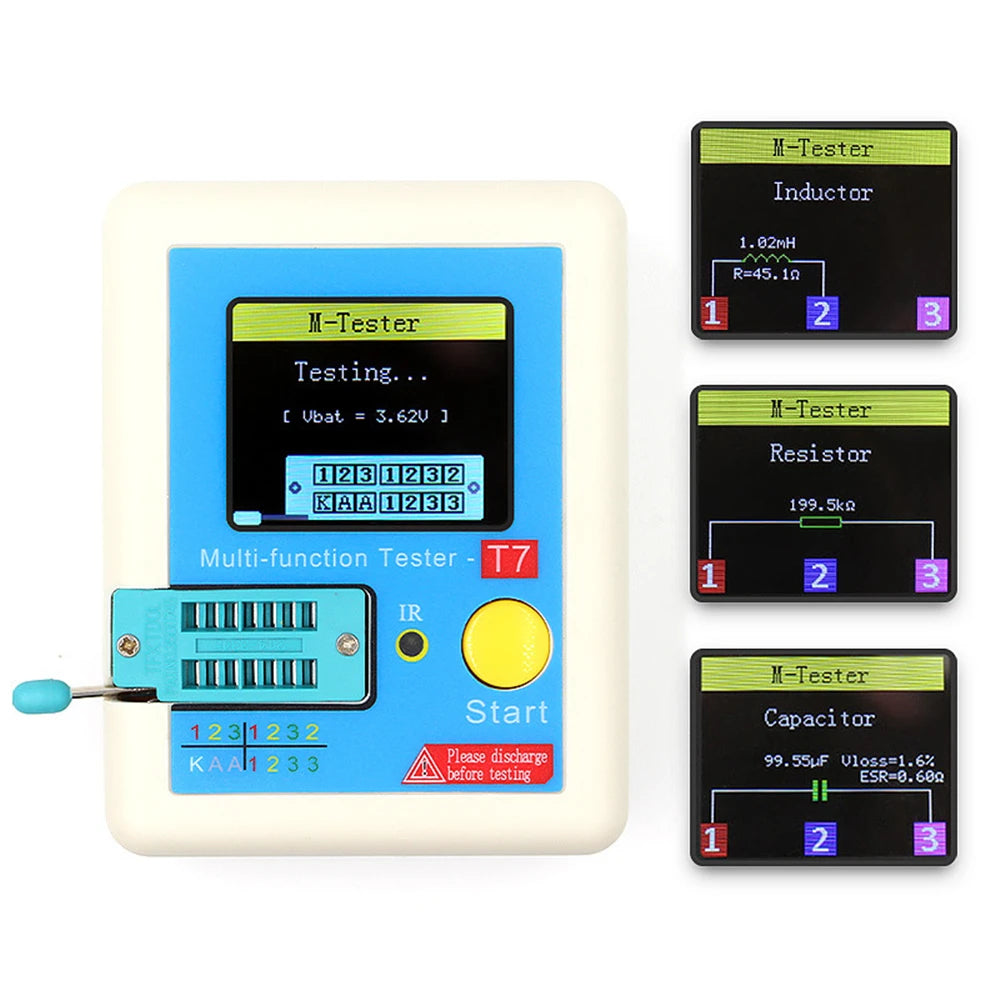

Used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs and batteries

Specification:

Sweep range: 0.1MHz
Voltage: 3.7V
Display: 160 * 128 TFT
Battery: 1 * Li-ion battery, 3.7V, 300mAh

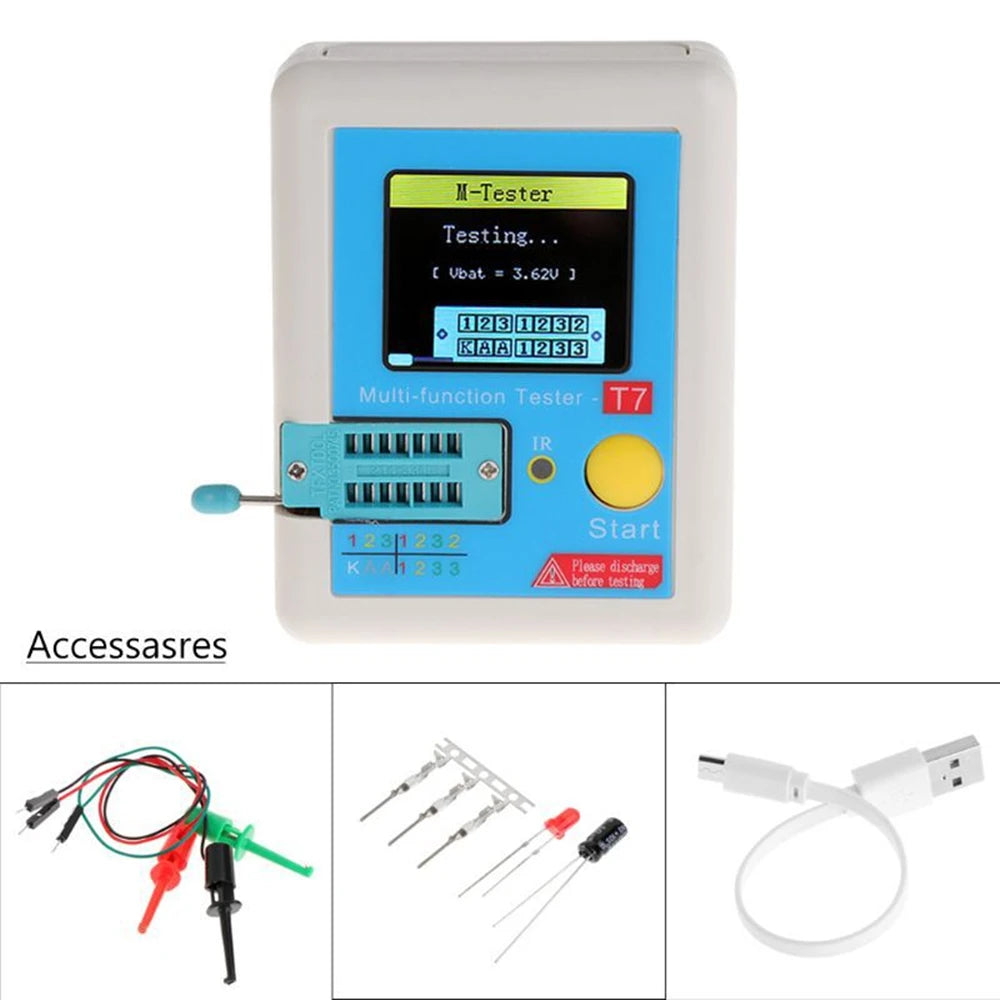

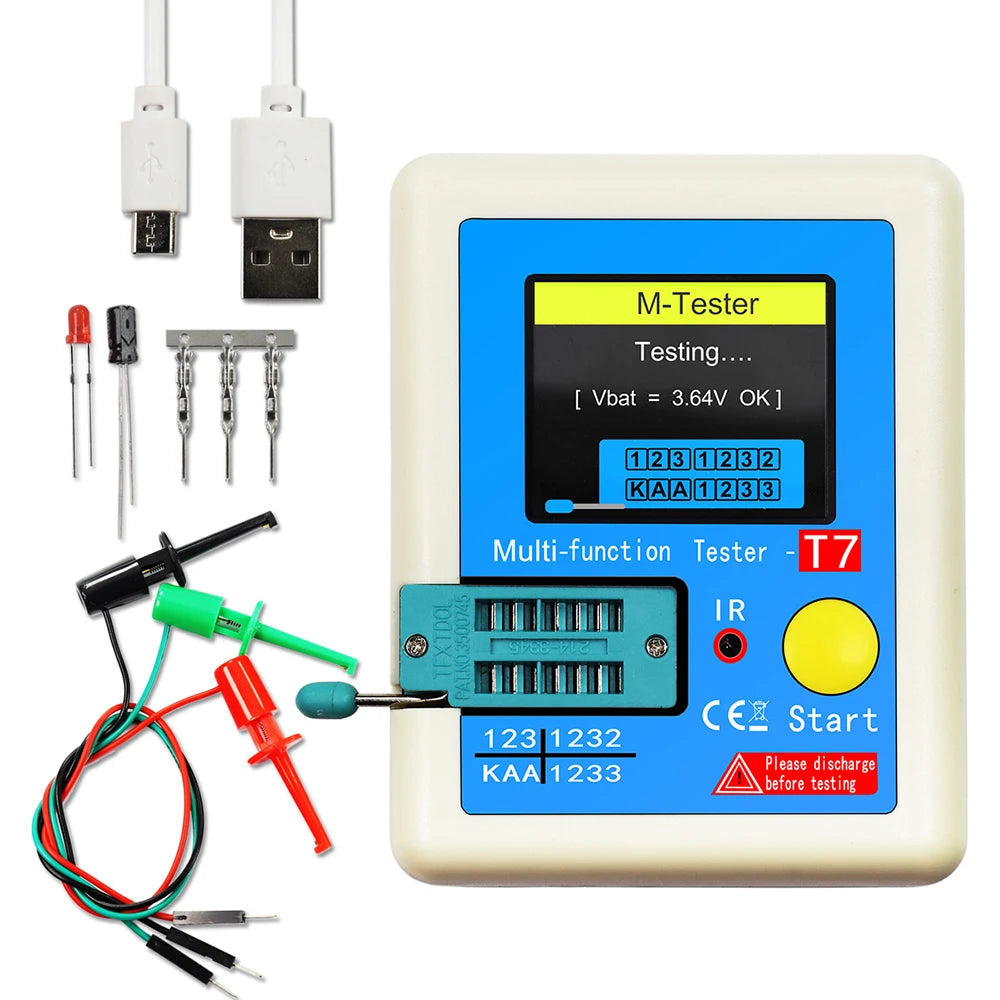

Package include:

1 * Tester
1 * USB Cable
1 * Test Clip
1 * LED
1 * Capacitance
1 * Resistance
